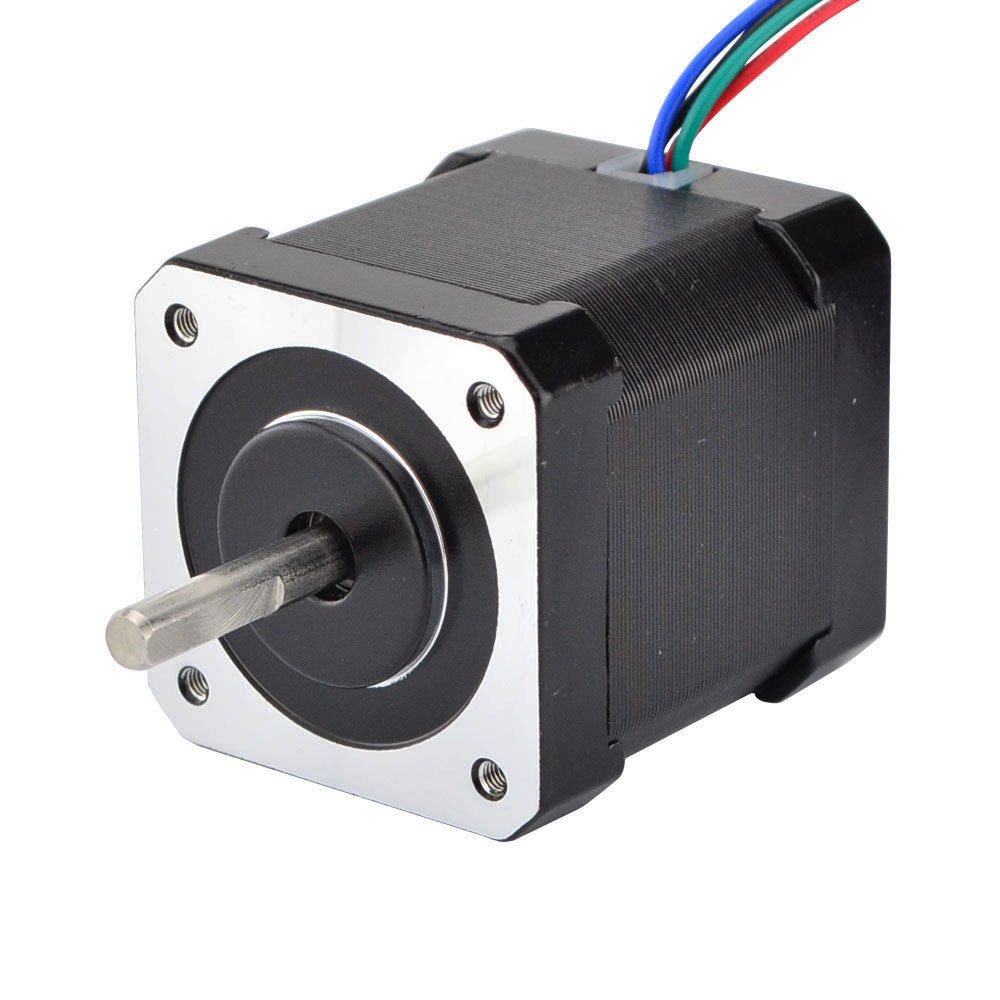

Dianao NEMA 17 Stepper Motor, 48 mm Body Length
Ships in 2-5 business days. Flat $12.95 shipping, free over $199.00.
- Sold and invoiced by Dianao Tech Inc.
- Card, invoice or purchase order at checkout
- Trade enquiries and stock checks: (737) 232-4517
About this item

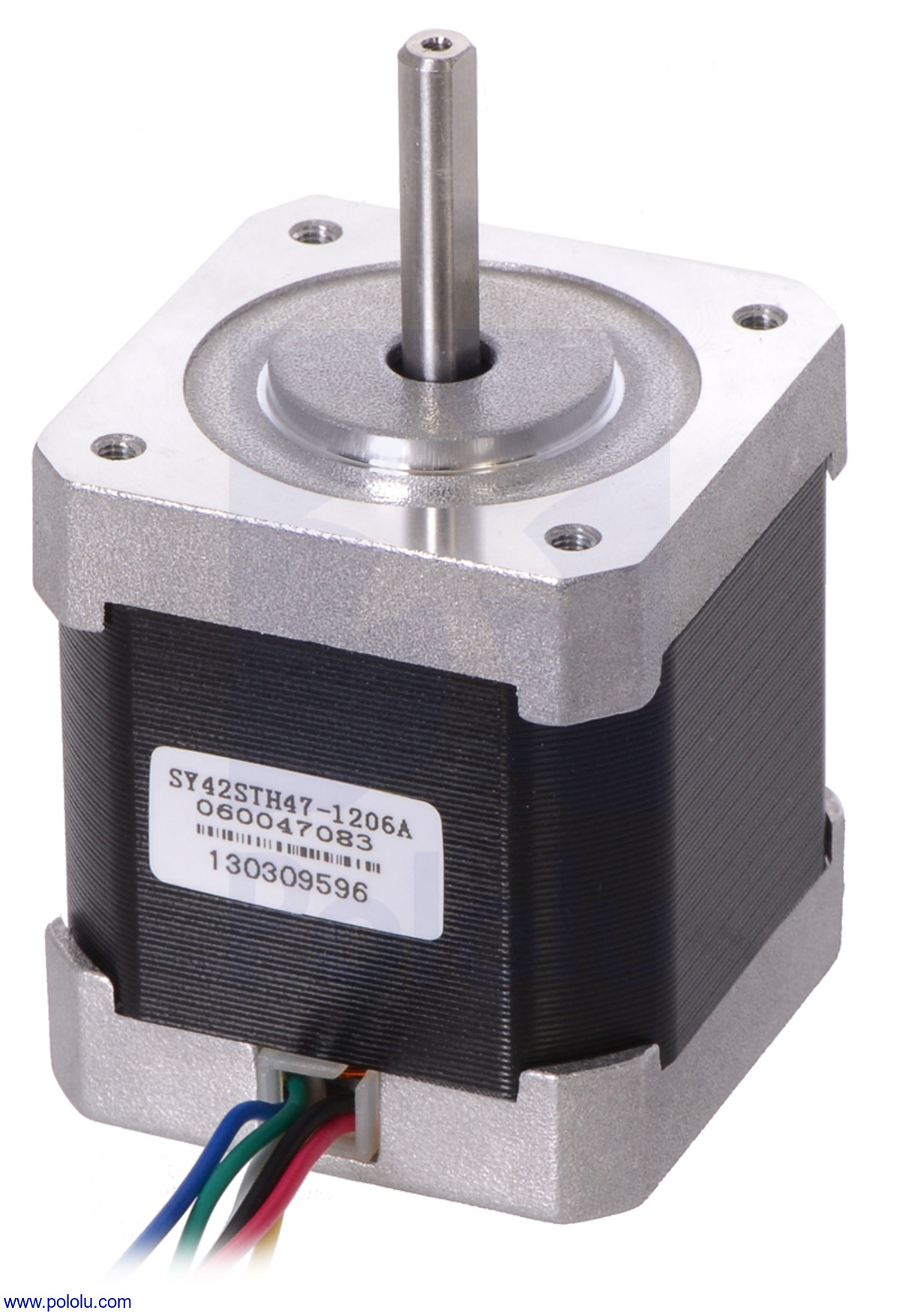

The NEMA 17 bipolar stepper motor is a two-phase hybrid stepping motor with a 42.3 mm square frame and 48 mm body length that produces precise rotational motion in discrete 1.8 degree increments without a position encoder. This 48 mm class (represented by the OMC-StepperOnline 17HS19-2004S1) delivers a holding torque of 59 Ncm at 2.0 A per phase, with a phase resistance of 1.4 ohm and phase inductance of 3.0 mH, making it well suited for medium-load positioning applications. It is driven exclusively by a stepper motor driver (such as A4988, DRV8825, or TMC2209) via step and direction logic or PWM current chopping, and it operates in full-step, half-step, or microstepping modes depending on the driver. The motor has no onboard feedback or encoder, so position integrity relies on open-loop step counting unless an external encoder is added for closed-loop operation. Typical applications include 3D printer axes, CNC router tables, pick-and-place machines, and camera sliders requiring repeatable low-speed precision motion.
Dianao NEMA 17 Stepper Motor, 48 mm Body Length is listed in the Servos, Actuators & Gripsters range from Dianao for trade buyers comparing Automation & Robotics. Use product SKU DN-NEMA17-48 when checking the exact line, option or replacement requirement. The page combines the current price, supplier-backed availability and recorded product data in one place so the listing can be assessed before it is added to a project order.
Recorded details for DN-NEMA17-48 include Holding torque: 0.55 N·m; Step angle: 1.8°; Rated current: 1.5 A/phase; Shaft: 5 mm D-cut. Check every applicable dimension, rating, material, included part and compatibility statement against the equipment or workpiece already on site. Supplier terminology can describe a family rather than every variant, so the SKU and specification table should control the final selection.
Specifications
| SKU | DN-NEMA17-48 |
| Brand | Dianao |
| Department | Automation & Robotics |
| Category | Servos, Actuators & Gripsters |
| Fulfillment | Dianao owned stock |
| Availability | In stock |
| Lead time | 2-5 business days |
| Holding torque | 0.55 N·m |
| Step angle | 1.8° |
| Rated current | 1.5 A/phase |
| Shaft | 5 mm D-cut |
| holding_torque | 59 Ncm (83.55 oz-in) |
| rated_current | 2.0 A per phase |
| resistance_per_phase | 1.4 ohm |
| inductance_per_phase | 3.0 mH +/- 20% (at 1 kHz) |
| step_angle | 1.8 deg |
| steps_per_revolution | 200 |
| rated_voltage | 2.8 V (rated coil voltage, typically driven at 12-48 V via chopper driver) |
| weight | 390 g |
| dimensions | 42.3 x 42.3 x 48 mm (NEMA 17 frame) |
| shaft_diameter | 5 mm (D-cut flat) |
| operating_temperature | -20 to +50 deg C (Class B insulation, 130 deg C max winding) |
| number_of_leads | 4 (bipolar) |
